Taped Radial Part Feeder (CF-180 / CF-180S)
帶式電容供料機 (CF-180 / CF-180S)
The CF-180 is a zero-waste cut-and-feed robotic feeder engineered specifically for automated robotic 'cut-and-insert' assembly lines. Processing taped radial components on demand in a synchronized one-by-one rhythm, it adjusts trimmed leads from 2.5 to 4.0 mm for immediate robotic insertion.
Processing & Feature Tags
Auto Feeder
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 一顆取一顆送 One after one
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 500(L) x 250(W) x 350(H) mm
Net Weight 淨重: 23 kgs
Catalog Page & Status
P.5 (Catalog_0005) • 標準紙帶孔距 A=12.7mm (CF-180)；特殊紙帶孔距 A=15mm (CF-180S)。
【Key Machine Features & Advantages】
- Direct Cut-and-Place Robotic Feeder: Engineered specifically for robotic 'cut-and-insert' automation lines, providing on-demand zero-waste feeding.
- Universal Tape Package Handling: Smoothly feeds taped radial through-hole components from reels or ammo pack boxes.
- Two Tape Pitch Specifications: Standard model CF-180 (12.7 mm hole pitch) and specialized model CF-180S (15.0 mm hole pitch).
- Lead Diameter Capacity: Accommodates component lead wire diameters up to Ø0.8 mm.
- Adjustable After-Cut Lead Length: Trimmed pin length is finely tunable from 2.5 to 4.0 mm for optimal solder joint inspection.
- Singulated One-by-One Synchronized Feed: Indexes one trimmed component per pick cycle, precisely locked to the robotic arm trajectory.
【Revision Notes】 可與自動插件產線連動控制訊號。
Lead Forming & Geometric Parameter Specifications

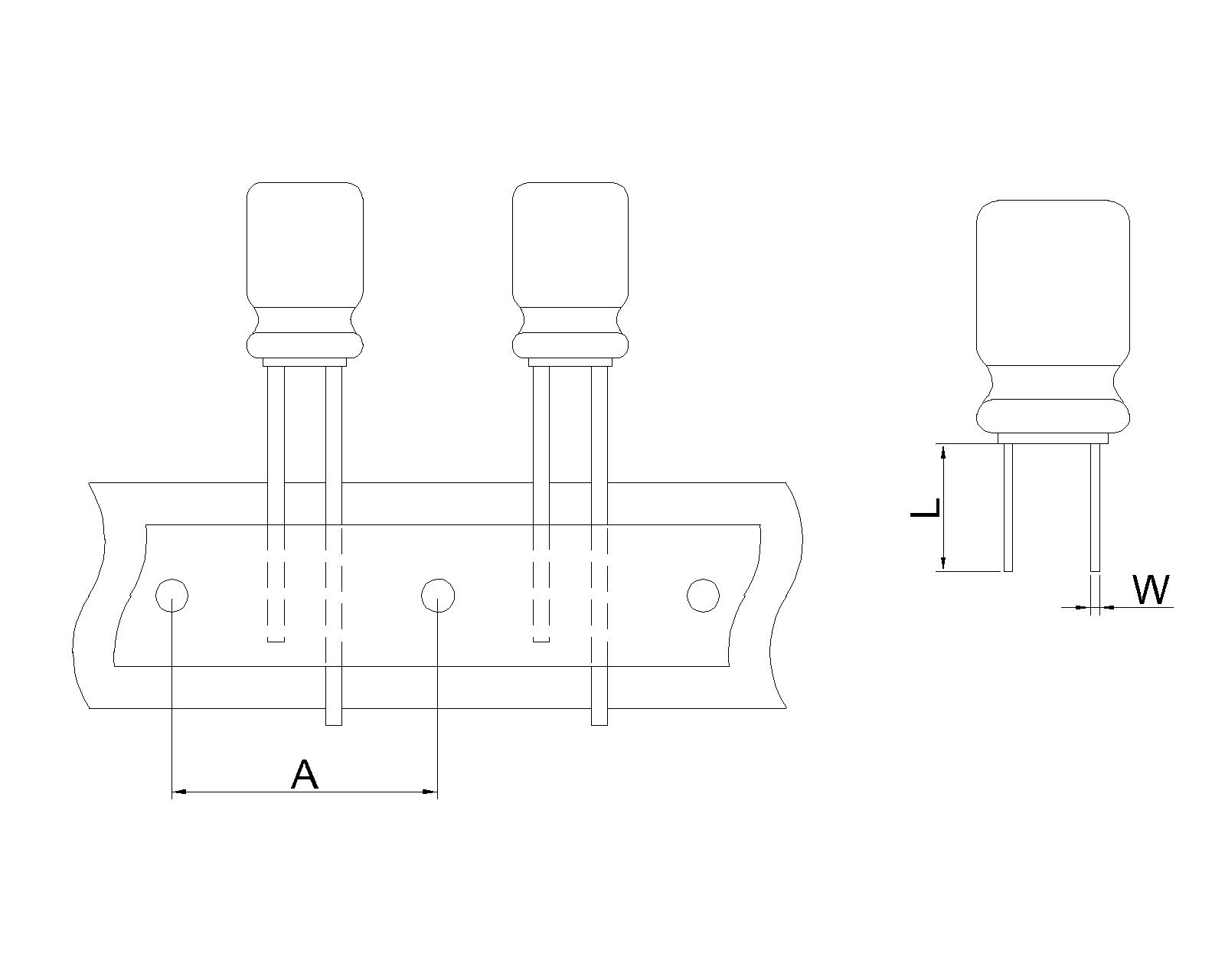

Unit: mm / Custom tooling available Dimension & Bending Schematic CF-180
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A | Tape Hole Pitch (A) | 標準 A=12.7mm / 特殊 A=15mm | Applicable to standard tape-mounted parts |
| W | Lead Wire Diameter (W) | Ø0.4 ~ Ø1.0 mm | Compatible lead wire diameter |
| L | Total Lead Length (L) | 3.0 ~ 20.0 mm | Total lead length from component base to lead tips |
