CF-360LX
Ren Thang Machine
CF-360LX
Loose Radial Lead Bending & Cutting Machine
散裝電容90度彎腳機
The CF-360LX integrates vibratory linear track feeding with a synchronized two-stage die module that shears leads to length and immediately bends them 90 degrees. Featuring independent or tandem operation, it eliminates dedicated bend dies and significantly reduces tooling overhead for high-mix radial assembly.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 9,000 pcs / Hour
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 520(L) x 500(W) x 470(H) mm
Net Weight 淨重: 38 kgs / 毛重: 41 kgs
Catalog Page & Status
P.1 (Catalog_0001 / Catalog_0002) • 在產 (Active)
【Key Machine Features & Advantages】
- Vibratory Linear Track Feeding: Smooth linear vibration smoothly conveys loose radial parts to the trimming station with minimal operator effort.
- Broad Radial Component Compatibility: Handles capacitors, LEDs, crystals, TO-92 transistors, and other loose upright parts.
- Synchronized Two-Stage Operation: High-precision shearing station cuts leads to length, followed immediately by 90-degree right-angle forming.
- Independent / Combined Operation: Trimming module and 90° bending module can operate in tandem or disengaged for cut-only processing.
- Cost-Effective Dual-Purpose Versatility: Eliminates dedicated custom dies for various 90° bends, significantly reducing tooling costs for high-mix production.
- Optional Optical Batch Counter: Digital LED component counter available upon request for precise batch verification.
【Revision Notes】 可另外加購安裝光學計數器，請訂購時指明。
Lead Forming & Geometric Parameter Specifications

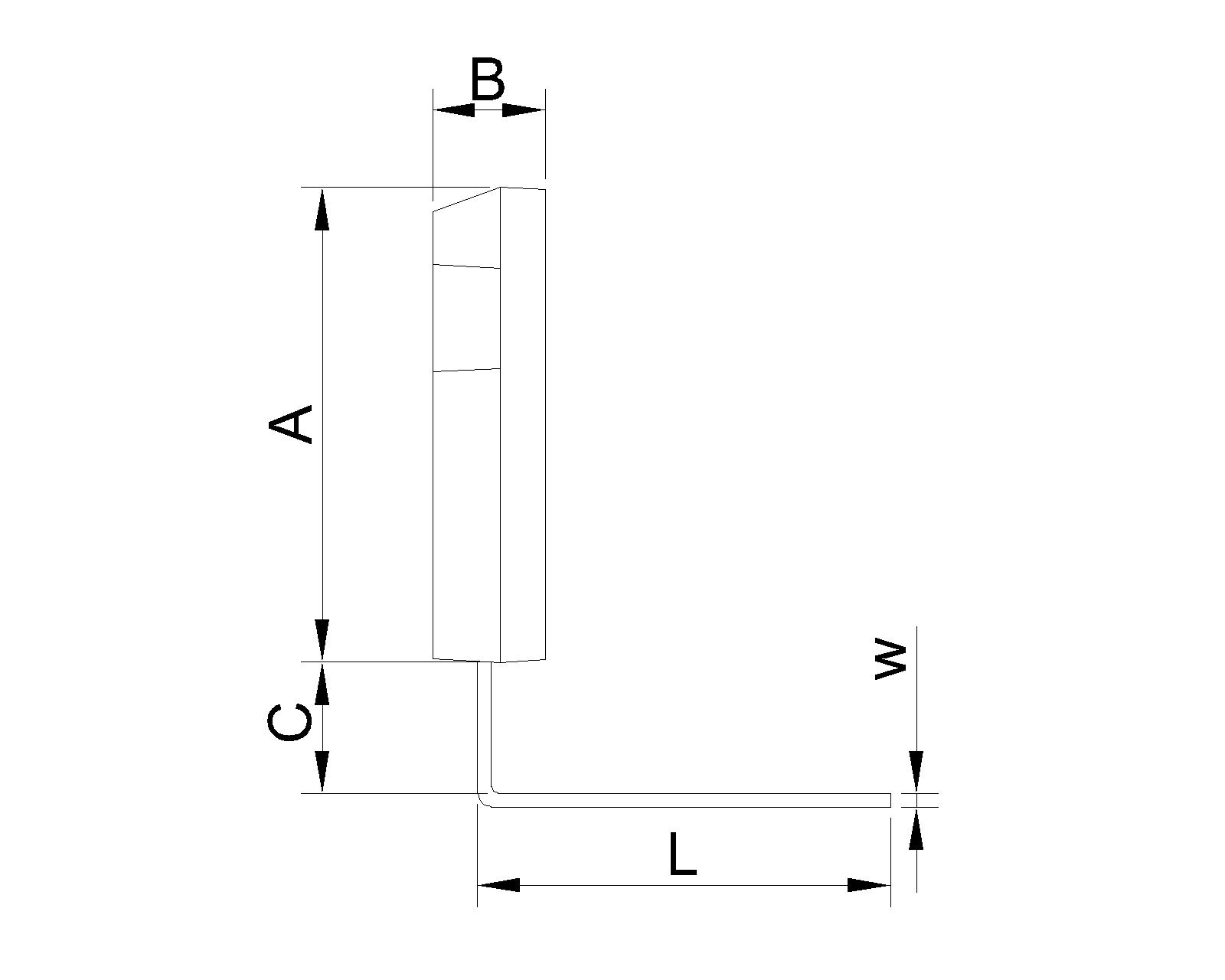

Unit: mm / Custom tooling available Dimension & Bending Schematic CF-360LX
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A | Body Length (A) | 3 ~ 30 mm | Body length for electrolytic capacitors, transistors, LEDs, etc. |
| B | Body Diameter (B) | 3 ~ 18 mm | Suitable for both small and large component packages |
| C | Shoulder Height (C) | 3 ~ 15 mm | Vertical shoulder height for lead bending |
| H | Lead Length (H) | 3 ~ 15 mm | Two-stage progressive tooling: trims leads first, then forms 90° bend |
| W | Wire Diameter (W) | Ø0.5 mm * | The cutting and molding modules can be used independently or combined |
