CF-368

Automatic Loose Radial Lead Cutter (For Most Radial Leads: LED, Caps, Transistors, EC)

自動散裝電容切腳機 (裁斷任何能站立的大顆零件)

The CF-368 features a master feeder bowl and three interchangeable carry wheels designed for automated high-speed lead trimming of large radial components (body diameter > 10 mm). With adjustable lead length (3–20 mm) and throughput up to 120 pcs/min, it provides fast, cost-effective changeovers for large capacitors.

Processing & Feature Tags

Loosed Radial

Straight Cutting

Vibratory Feeder

AC Motor

ENGINEERING SPECIFICATIONS

Machine Specifications & Performance

Processing Capacity 直徑 Φ13~Φ16: 120 pcs/Minute

Power / Air Supply 電壓: 110V/60Hz ; 220V/50Hz

Standard Tolerance ±0.3mm

Dimensions (L×W×H) 1050(L) x 1000(W) x 1000(H) mm

Net Weight 淨重: 160 kgs

Catalog Page & Status

P.3 (Catalog_0003) • 在產 (Active)

【Key Machine Features & Advantages】

Master-and-Sub Wheel Feeding System: Features a master bowl and 3 interchangeable sub-wheels (carry wheels) to feed large stand-up components (body diameter > 10 mm).
Broad Large-Component Compatibility: Ideal for large electrolytic capacitors, power transistors, LEDs, film capacitors, and ceramic disc capacitors (cylindrical shapes feed best).
Fast Tooling Changeover & Economical Sub-Wheels: Sub-wheel templates are quickly swapped and cost-effective; unlimited additional sub-wheels can be ordered for different diameters.
Versatile for Mass Production & High-Mix Batches: The premier automated lead trimming solution for large radial components, slashing labor costs.
Adjustable Lead Length & High Throughput: Trimmed lead length adjustable from 3 to 20 mm; processing speed reaches 120 pcs/min (7,200 pcs/hr) for Ø13~Ø16 mm parts.
Standard Tooling Package: Includes 3 custom sub-wheels; customers must supply 200 sample pieces per specification upon ordering for custom machining and trial run.

【Revision Notes】適合大型 EMS 電子廠 24 小時連續作業。

Lead Forming & Geometric Parameter Specifications

Unit: mm / Custom tooling available

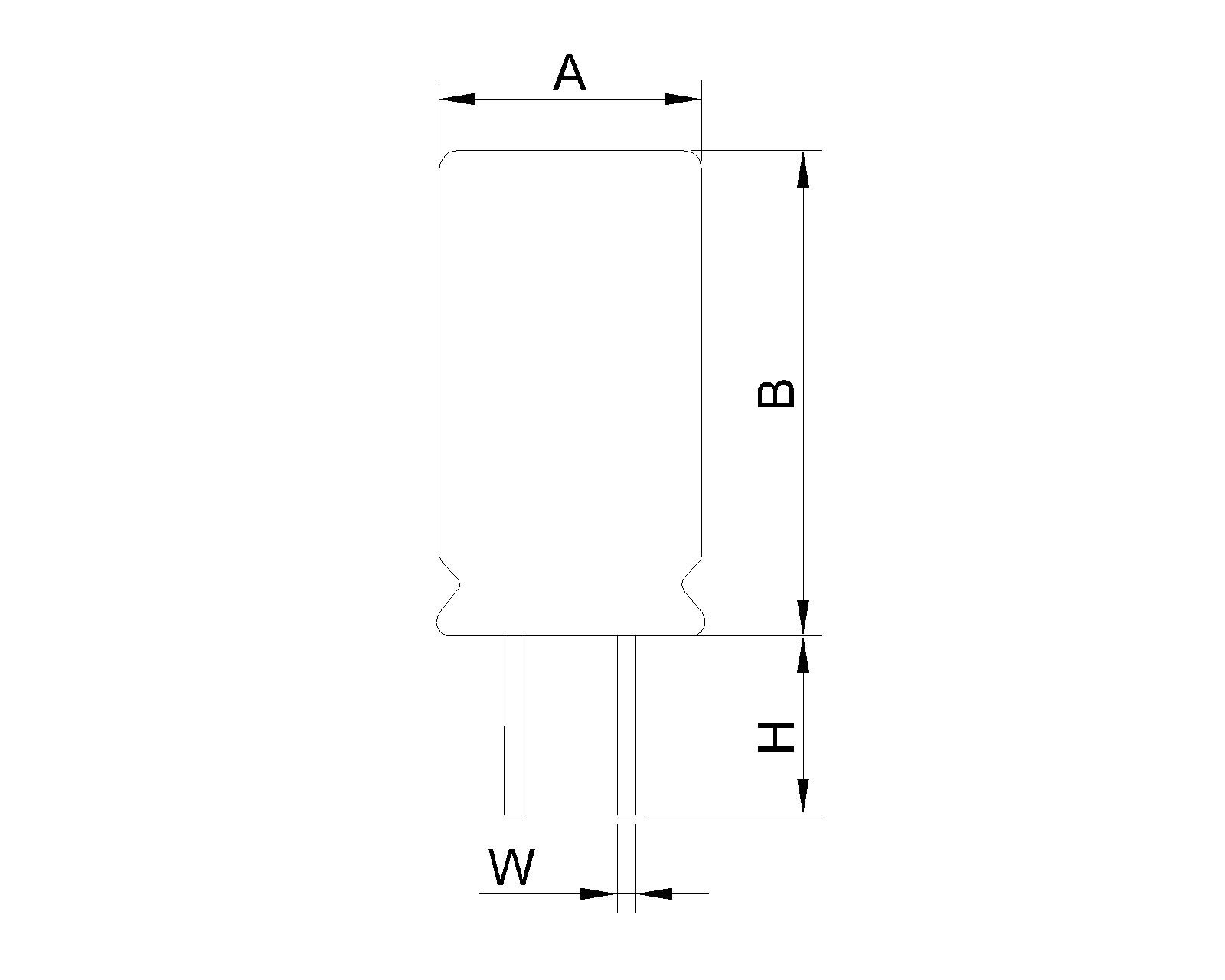

Dimension & Bending Schematic CF-368

Callouts match specifications in the table (Click image to enlarge)

Code	Parameter	Standard Value / Range	Engineering Notes
H	After-cut Lead Length	3 ~ 20 mm (可調 Adjustable)	Precision shearing mechanism
A	Applicable Body Dia.	＞ 10 mm (大顆零件)	Suitable for cutting any large electronic parts that can stand
B	Body Height	> 18 mm	Cylindrical components feed smoothly; rectangular packages like TO-220 require dedicated vibratory bowl
CAP	Working Capacity	120 pcs / Minute (Φ13~Φ16)	Three sub-plates are included as standard for customers to choose
