ICF-100
Ren Thang Machine
ICF-100
I.C. Lead Aligning Machine - Roller Press
I.C. 整型機
The ICF-100 is a continuous roller-press DIP IC lead straightener that aligns an entire tube of ICs in just 3 seconds (~1,000 pcs/hr). Patented knob adjustment enables seamless span tuning from 0.3" to 0.75" (300–750 mil) without changing rails, eliminating insertion jams caused by bent leads.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 3 秒/管料 (3 sec./tube)
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 330(L) × 250(W) × 330(H) mm
Net Weight 5 kg
Catalog Page & Status
P.12 (Catalog_0012) • 在產 (Active)
【Key Machine Features & Advantages】
- Continuous roller press design delivers rapid lead straightening, processing one stick/tube in just 3 seconds (approx. 1,000 pcs/hour).
- Patented knob adjustment enables seamless width tuning from 0.3" to 0.75" (300mil ~ 750mil) without changing guide rails.
- Applicable component dimensions: Body width A 6~18mm, lead length H 4~9.5mm, and thickness D 3~12mm.
- Effectively straightens deformed or bent leads from transit or handling, preventing jams during automatic PCB insertion.
- Engineered for mass production DIP IC alignment with intuitive, maintenance-free operation.
- Note: For ICs with only 2 pins per side (total 4 leads), the punching-method ICF-106 is recommended.
【Revision Notes】 適用 DIP 封裝大量整型；若 IC 單邊僅有 2PIN 腳建議選用 ICF-106。
Lead Forming & Geometric Parameter Specifications

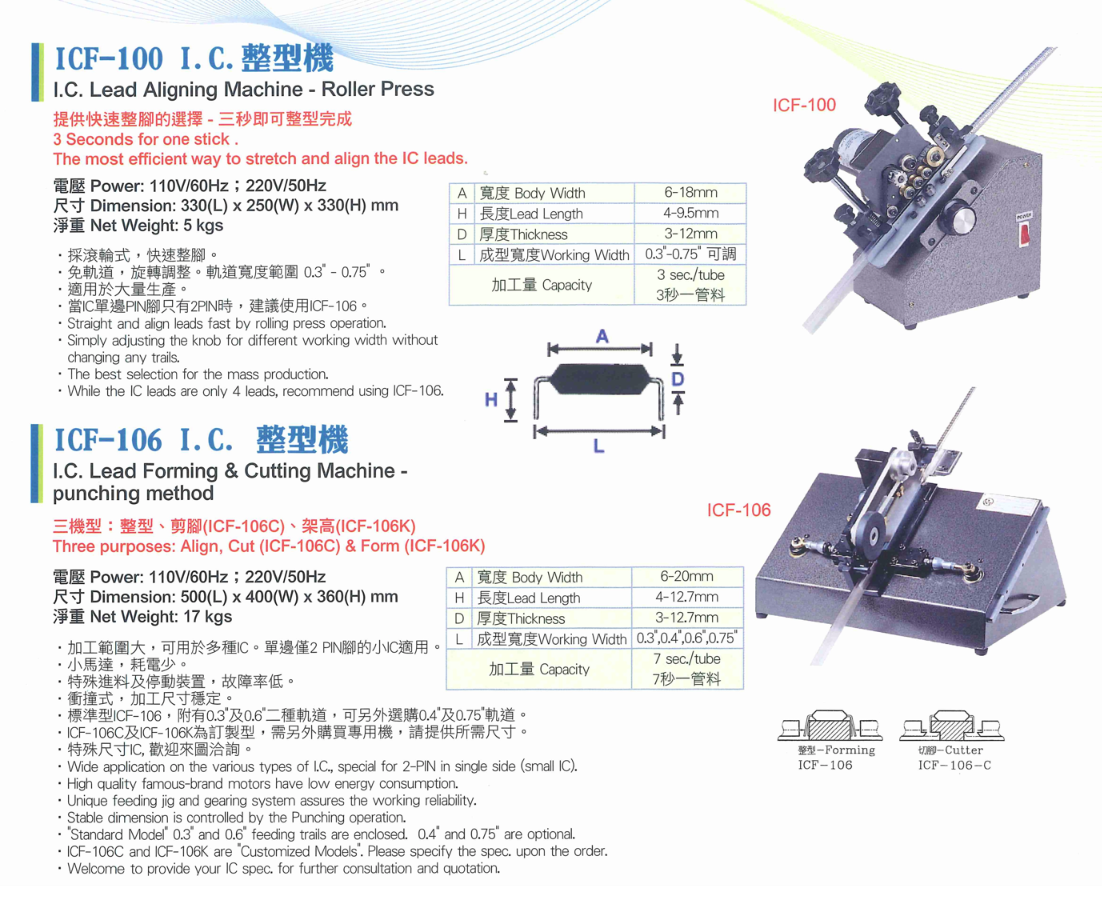

Unit: mm / Custom tooling available Dimension & Bending Schematic ICF-100
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| A_BODY_W | Body Width (A) | 6 ~ 18 mm | Roller-type continuous shaping |
| H_LEAD_L | Lead Length (H) | 4 ~ 9.5 mm | Quick straightening of skewed leads |
| D_THICK | Body Thickness (D) | 3 ~ 12 mm | Keep the chip shell intact |
| L_SPAN_W | Working Width (L) | 0.3" ~ 0.75" (300 ~ 750 mil) 可調 | No need to change the track knob adjustment |
| CAP_TUBE | Processing Speed | 3 秒 / 管料 (3 sec./tube) | Speed of about 1,000 pcs/hour |
