JF760
Ren Thang Machine
JF760
Jumper Wire Forming Machine - no waste, one adjustable lead length by punching method
無廢料跳線成型機
The JF-760 (JF760) is a high-precision punch-action zero-waste jumper wire machine processing spooled wire automatically at 7,500 pcs/hour. Featuring digital LED batch preset controls and an emergency stop, its heavy-duty 44 kg frame absorbs vibration for smooth, continuous wire prep.
Processing & Feature Tags
REL
Reels
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 7,500 pcs/hr
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 800(L) × 400(W) × 600(H) mm
Net Weight 44 kg
Catalog Page & Status
P.13 (Catalog_0013) • 在產 (Active)
【Key Machine Features & Advantages】
- Precision punching method no-waste jumper wire former, featuring an adjustable single-sided lead length with 100% material utilization.
- High throughput capacity of 7,500 pcs/hour with continuous, fully automatic wire straightening, punching, cutting, and bending.
- Equipped with advanced electronic controls as standard: emergency stop safety switch, batch quantity pre-set auto-stop, and digital LED counter.
- Excellent dimension flexibility: single lead (h) is continuously adjustable, with maximum total wire length reaching up to 46 mm (h + H + L ≤ 46 mm).
- Standard wire diameter of Ø0.6 ~ Ø0.7 mm; fixed lead length (H) custom-specified at ordering; supports thick wires (>Ø0.8 mm) upon request.
- Built with premium tungsten carbide tooling and gentle friction feed mechanism, guaranteeing scratch-free leads and minimal downtime.
- Heavy-duty rigid frame (44 kg; 800 × 400 × 600 mm) absorbs punching vibrations for whisper-quiet and reliable non-stop operation.
【Revision Notes】 標準線徑 Ø0.6~0.7mm (超過 Ø0.8mm 需訂製)；腳長H固定需指定；送線總長最長46mm。
Lead Forming & Geometric Parameter Specifications

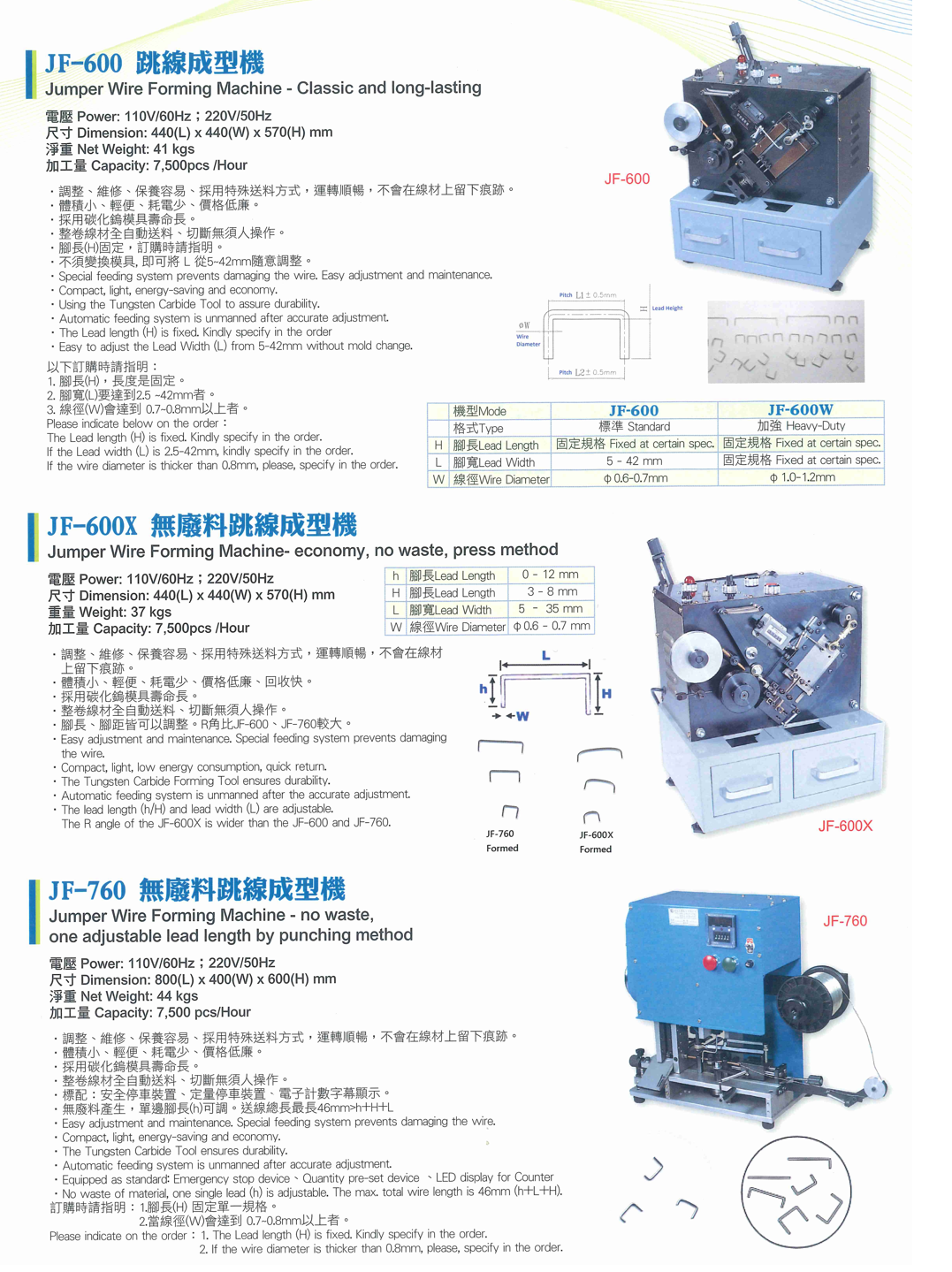

Unit: mm / Custom tooling available Dimension & Bending Schematic JF760
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| h_ADJ | Adjustable Lead (h) | 連續可調 (Adjustable) | Free fine-tuning on one side without segments |
| H_FIX | Fixed Lead (H) | 固定單一規格 (訂單指定) | Fixed single length specification |
| TOTAL_L | Max Total Length (h+H+L) | 最長 46 mm (h + H + L ≤ 46mm) | 100% zero waste to save material costs |
| W_WIRE | Wire Diameter (W) | Ø0.6 ~ Ø0.7 mm (標準) | Please specify when ordering if it exceeds Ø0.8mm |
| CONTROL_SYS | Standard Electronic Controls | 安全停車裝置 / 定量預設停車 / LED 計數顯示幕 | Intelligent electronic control and automatic anti-fooling |
| CAP_HR | Processing Capacity | 7,500 pcs / 小時 (Hour) | Uniform and stable collision molding size |
