KA-B80
Ren Thang Machine
The KA-B80 is a dedicated manual PCB underside brush cleaning machine equipped with a motorized high-density copper wire brush spinning at 600 RPM. Designed for post-wave-soldering PCBA finishing, it sweeps away adhered solder beads, metal burrs, and flux residues to prevent short circuits.
Processing & Feature Tags
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 軌道 0 ~ 3 M/分鐘 (無段可調)；毛刷 0 ~ 700 RPM
Power / Air Supply 220V/50Hz
Standard Tolerance PCB 工作寬度 10 ~ 400 mm
Dimensions (L×W×H) 1200(L) × 780(W) × 900(H) mm
Net Weight 160 kg
Catalog Page & Status
P.17 (Catalog_0017) • 在產 (Active)
【Key Machine Features & Advantages】
- Fully automatic conveyorized PCB brushing machine with continuous feeding rails, purpose-built for high-volume automated SMT/DIP lines.
- Advanced two-stage cleaning mechanism: automatically dips and wets with cleanser first, followed by dynamic roller brush scrubbing and polishing.
- Soft precision roller brush design ensures thorough post-solder cleaning without scratching PCB traces, pads, or solder masks.
- Integrated anti-floating pressing device firmly secures large-format and thin PCBs against upward warping and track buckling.
- Seamless in-line connectivity: optional inlet/outlet docking conveyors link directly with wave soldering machines for an unbroken automated workflow.
- Full parameter adjustability: roller brush cleaning angle, vertical clearance height, and brush RPM are all independently tunable.
- Dual process versatility: highly effective for both wave solder flux residue cleaning and post-soldering PCB residual adhesive/glue removal.
- Stepless conveyor feeding speed (0 ~ 3 M/min), wide brush speed range (0 ~ 700 RPM), and heavy-duty 15-liter solvent reservoir.
- Broad working envelope accommodating PCB widths from 10 mm to 400 mm for comprehensive board compatibility.
【Revision Notes】 溶劑槽容量 15 公升；軌道速度 0~3 M/min；毛刷轉速 0~700 RPM。可選配前後進出料輸送軌道。
Lead Forming & Geometric Parameter Specifications

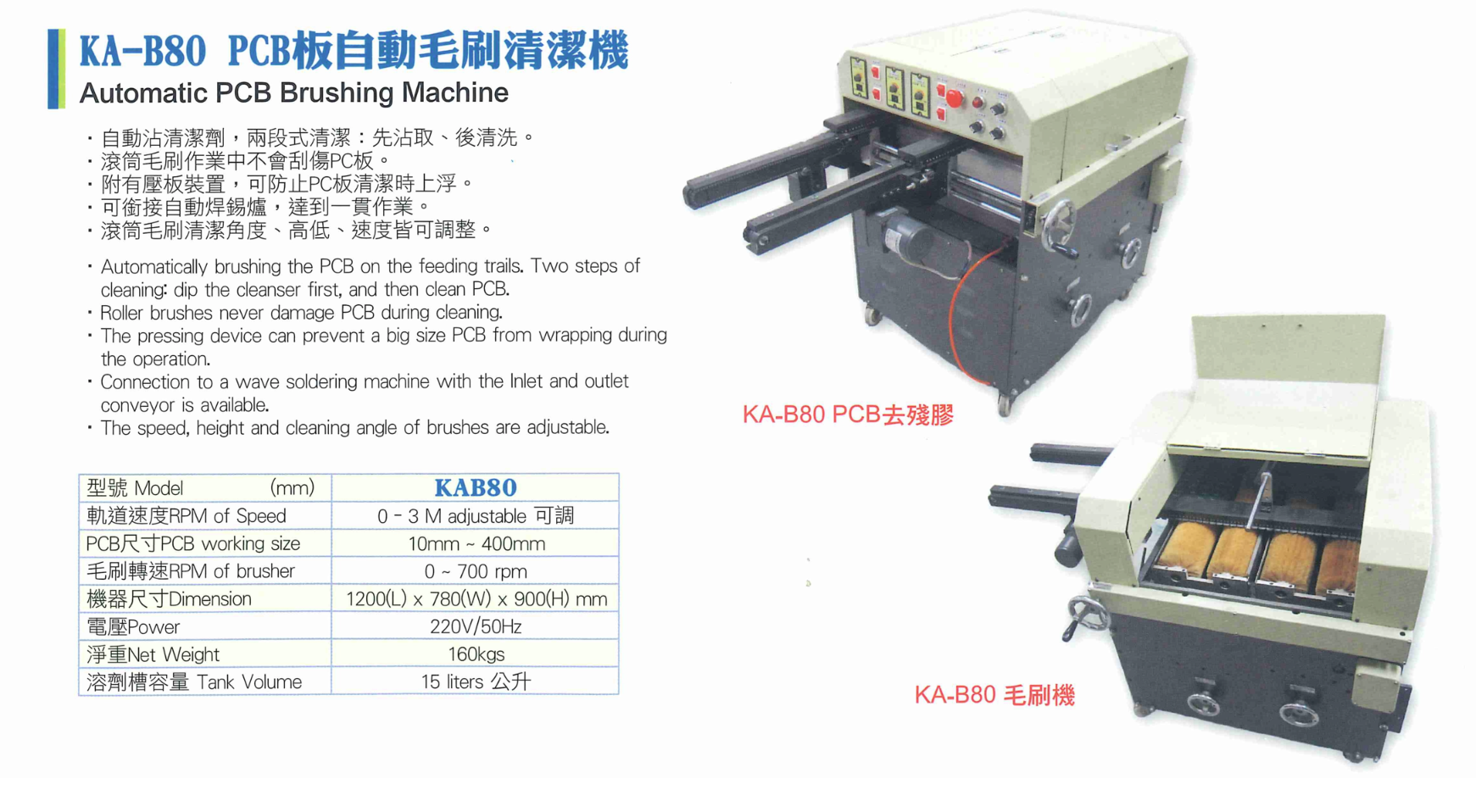

Unit: mm / Custom tooling available Dimension & Bending Schematic KA-B80
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| TRACK_SPEED | Conveyor Feeding Speed | 0 ~ 3 M / 分鐘 (無段可調 / Adjustable) | Can be adjusted steplessly to match the rhythm of the wave soldering furnace |
| PCB_RANGE | Applicable PCB Width | 10 ~ 400 mm | Applicable to most standard and ultra-wide PC boards |
| BRUSH_RPM | Brusher RPM Range | 0 ~ 700 RPM (連續可調 / Adjustable) | Continuous speed adjustment corresponds to different flux cleaning difficulties |
| TANK_VOL | Solvent Tank Capacity | 15 公升 (Liters) | Large-capacity solvent tank, suitable for long-term mass production operations |
| TWO_STAGE | Two-Step Cleaning Mechanism | 自動沾清潔劑，兩段式清潔：先沾取、後清洗 | Deep and thorough removal of rosin residue and solder ball residue |
| HOLD_DOWN | PCB Hold-Down Device | 附有壓板裝置，防止大尺寸薄板 PCB 清潔時上浮與翹曲 | Maintain stable cleaning of the contact surface without jamming |
| INLINE_EXP | Inline Soldering Connection | 可加裝前後進出料軌道無縫銜接焊錫爐 | Achieve fully automatic and consistent assembly line operations |
| GLUE_REMOVAL | Residual Glue Removal | 亦廣泛適用於 PCB 板焊後去殘膠作業 | One machine with multiple uses, improve equipment investment efficiency |
