HRFT-301F

Manual Taped Axial Lead Former - F Type (Vertical Lead Forming)

手搖帶式電阻立式成型機-F型 (立式站立型)

The HRFT-301F is a manual hand-crank vertical axial former that bends one lead 180° for high-density stand-up PCB insertion (4,000–6,000 pcs/hr). Accommodating lead pitches of 2.5–13.5 mm without electricity, it clamps securely to any assembly bench for versatile prototyping and small batches.

Processing & Feature Tags

Taped Axial

Straight Cutting

F-Shape, 180 Degree Bend Over

Taped - Axial

Manual

ENGINEERING SPECIFICATIONS

Machine Specifications & Performance

Processing Capacity 4,000 ~ 6,000 pcs / Hour (手動手搖)

Power / Air Supply 純手動手搖操作 (免電力 / 不受停電影響)

Standard Tolerance ±0.3mm

Dimensions (L×W×H) 430(L) x 300(W) x 280(H) mm

Net Weight 淨重: 8 kgs

Catalog Page & Status

P.6 (Catalog_0006) • 單邊立式站立成型 (腳距 A=4-18mm，另腳長 H<25mm，腳距 P=2.5-13.5mm)。

【Key Machine Features & Advantages】

Manual Hand-Crank Drive: Cord-free manual operation unaffected by power outages, delivering 4,000 ~ 6,000 pcs/hour.
F-Type Vertical Stand-Off Forming: 180° single-lead hairpin bend allows upright component mounting to maximize high-density PCB space.
Tooling Specifications: Insertion pitch P = 2.5~13.5 mm, vertical lead pitch A = 4~18 mm, support lead H < 25 mm, wire dia. Ø0.35~Ø0.8 mm.
Minimal Maintenance & Intuitive Operation: Easy tool adjustments requiring no specialized training; compact portable design.
High Durability & ROI: Hardened tool-steel cutters deliver sharp, burr-free cuts and clean hairpin bends for axial components.
Benchtop Clamping Mounting: Secures effortlessly to assembly tables; custom forming dimensions fabricated to customer drawings.

【Revision Notes】直立站立成型腳距 P 為 2.5 ~ 13.5 mm；對照全系列規格對照表。

Lead Forming & Geometric Parameter Specifications

Unit: mm / Custom tooling available

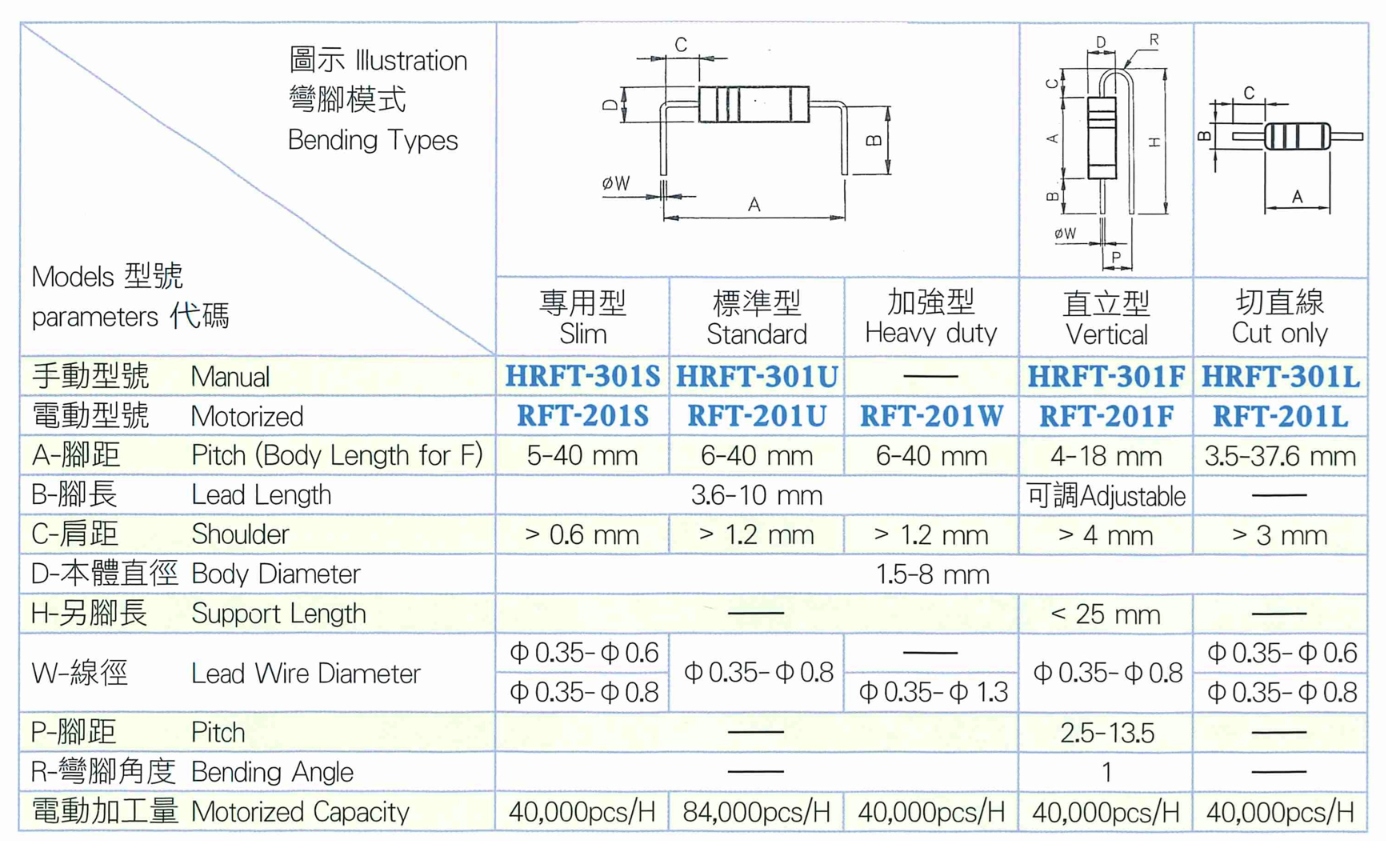

Dimension & Bending Schematic HRFT-301F

Callouts match specifications in the table (Click image to enlarge)

Code	Parameter	Standard Value / Range	Engineering Notes
A	Pitch A (Vertical)	4 ~ 18 mm	Single-sided vertical bending standing forming
B	Lead Length (B)	可調 Adjustable	Upright plug-in length
C	Shoulder (C)	＞ 4 mm	Vertical forming upper shoulder distance
H	Support Length (H)	＜ 25 mm	Vertical standing support length
P	Pitch (P)	2.5 ~ 13.5 mm	PCB board plug-in lead span
W	Wire Diameter (W)	Φ0.35 ~ Φ0.8 mm	Vertical processing of resistors and diodes

SERIES COMPARISON MATRIX • Catalog P.06 Reference

RF / HRFT Series Axial Lead Bending & Forming Capabilities Matrix

Comprehensive dimension limits and capacity comparison across Slim, Standard, Heavy Duty, Vertical, and Cut Only models

U_BEND

Horizontal U-Bend

V_BEND

Vertical Stand-off

CUT_ONLY

Straight Cut Only

Parameters / Models	Slim Manual: HRFT-301S Motorized: RFT-201S	Standard Manual: HRFT-301U Motorized: RFT-201U	Heavy Duty Manual: — Motorized: RFT-201W	★ Current Vertical Manual: HRFT-301F Motorized: RFT-201F	Cut Only Manual: HRFT-301L Motorized: RFT-201L
A Pitch (Body Length for F)	5 ~ 40 mm	6 ~ 40 mm	6 ~ 40 mm	4 ~ 18 mm	3.5 ~ 37.6 mm
B Lead Length	3.6 ~ 10 mm	3.6 ~ 10 mm	3.6 ~ 10 mm	可調 Adjustable	—
C Shoulder	> 0.6 mm	> 1.2 mm	> 1.2 mm	> 4 mm	> 3 mm
D Body Diameter	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm
H Support Length	—	—	—	< 25 mm	—
W Lead Wire Diameter	Φ0.35~0.6 / Φ0.35~0.8 mm	Φ0.35 ~ 0.8 mm	Φ0.35 ~ 1.3 mm (粗線徑)	Φ0.35 ~ 0.8 mm	Φ0.35~0.6 / Φ0.35~0.8 mm
P Pitch	—	—	—	2.5 ~ 13.5 mm	—
R Bending Angle	—	—	—	1° (直立折彎)	—
CAP Motorized Capacity	40,000 pcs/H	84,000 pcs/H (超高速)	40,000 pcs/H	40,000 pcs/H	40,000 pcs/H
