RF-101M

Axial Lead Forming Machine (Horizontal Mount with Kinks)

電阻成型機-臥式打KINK架高

The RF-101M is an axial lead former engineered for horizontal U-bending with dual standoff kinks (up to 110 pcs/min), ensuring firm PCB snap-in retention before wave soldering. It is available in dual loose/taped (RF-101M), loose-only (RF-101MA), and taped-only (RF-101MB) feeding configurations.

Processing & Feature Tags

Taped Axial

Loosed Axial

Odd Packaging

Kink - Outward/Inward

BDU

Straight Cutting

Taped - Radial

LSE

AC Motor

BOWL

ENGINEERING SPECIFICATIONS

Machine Specifications & Performance

Processing Capacity 6,600 pcs/小時 (110 pcs/分) / 6,600 pcs/Hour (110 pcs/min)

Power / Air Supply 110V/60Hz ; 220V/50Hz

Standard Tolerance ±0.3mm

Dimensions (L×W×H) 1140(L) x 730(W) x 750(H) mm

Net Weight 115 kgs

Catalog Page & Status

P.9 (Catalog_0009) • 在產 (Active)

【Key Machine Features & Advantages】

Axial lead forming machine designed for horizontal mount with kinks, ideal for high-volume DIP insertion lines.
Suitable for axial components including resistors, diodes, and inductors requiring precision bending and kink standoff.
Lead kink forming provides secure PCB standoff and self-locking retention to prevent component tilting before soldering.
Highly flexible die tooling system: customized dies built to customer specifications; simply change die sets for different specs.
Versatile feeding configurations: Dual loose/taped (RF-101M), Loose-only (RF-101MA), and Taped-only (RF-101MB).
High throughput of 110 pcs/min (6,600 pcs/hr); vibratory bowl accommodates up to 600 loose parts per batch.
Accommodates component body length 3.8~20 mm, body diameter 2.3~8 mm, and lead wire diameter Ø0.4~Ø1.3 mm.

【Revision Notes】每一種形狀適用一組模具；入料模式分為散帶合併款 (RF-101M, 115kg)、散裝款 (RF-101MA, 105kg) 與帶裝款 (RF-101MB, 80kg)。

Lead Forming & Geometric Parameter Specifications

Unit: mm / Custom tooling available

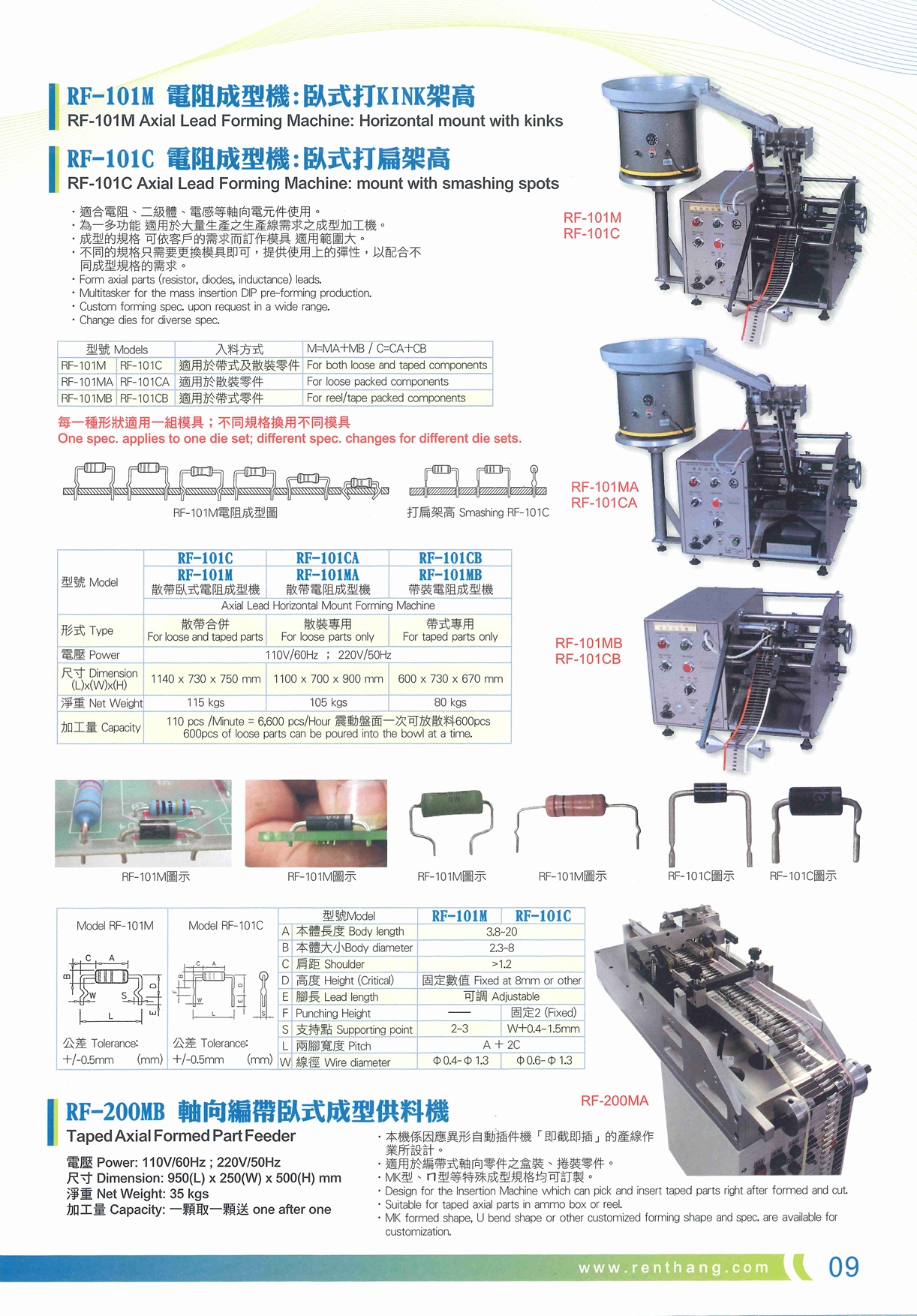

Dimension & Bending Schematic RF-101M

Callouts match specifications in the table (Click image to enlarge)

Code	Parameter	Standard Value / Range	Engineering Notes
A_BODY	Body Length (A)	3.8 ~ 20 mm	Resistor, diode, inductor body length
B_DIA	Body Diameter (B)	2.3 ~ 8 mm	Suitable for 1/8W ~ 5W various types of component body diameters
C_SHOULDER	Shoulder (C)	> 1.2 mm	Safety distance between the bending point and the component body
D_HEIGHT	Forming Height (D)	固定數值 (Fixed at 8mm or custom)	Key fixing height set according to the forming tooling
E_LEAD	Lead Length (E)	可調 (Adjustable)	Fine adjustment of lead length after cutting
S_SUPPORT	Supporting Point (S)	2 ~ 3 mm	Support point depth of KINK lead card board
L_PITCH	Lead Pitch (L)	A + 2C	PCB board span, equal to body length plus shoulder distance on both sides
W_WIRE	Wire Diameter (W)	Ø0.4 ~ Ø1.3 mm	Forming tooling cutter supports wire diameter range

SERIES COMPARISON MATRIX • Catalog P.06 Reference

RF / HRFT Series Axial Lead Bending & Forming Capabilities Matrix

Comprehensive dimension limits and capacity comparison across Slim, Standard, Heavy Duty, Vertical, and Cut Only models

U_BEND

Horizontal U-Bend

V_BEND

Vertical Stand-off

CUT_ONLY

Straight Cut Only

Parameters / Models	Slim Manual: HRFT-301S Motorized: RFT-201S	★ Current Standard Manual: HRFT-301U Motorized: RFT-201U	Heavy Duty Manual: — Motorized: RFT-201W	Vertical Manual: HRFT-301F Motorized: RFT-201F	Cut Only Manual: HRFT-301L Motorized: RFT-201L
A Pitch (Body Length for F)	5 ~ 40 mm	6 ~ 40 mm	6 ~ 40 mm	4 ~ 18 mm	3.5 ~ 37.6 mm
B Lead Length	3.6 ~ 10 mm	3.6 ~ 10 mm	3.6 ~ 10 mm	可調 Adjustable	—
C Shoulder	> 0.6 mm	> 1.2 mm	> 1.2 mm	> 4 mm	> 3 mm
D Body Diameter	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm	Ø1.5 ~ Ø8 mm
H Support Length	—	—	—	< 25 mm	—
W Lead Wire Diameter	Φ0.35~0.6 / Φ0.35~0.8 mm	Φ0.35 ~ 0.8 mm	Φ0.35 ~ 1.3 mm (粗線徑)	Φ0.35 ~ 0.8 mm	Φ0.35~0.6 / Φ0.35~0.8 mm
P Pitch	—	—	—	2.5 ~ 13.5 mm	—
R Bending Angle	—	—	—	1° (直立折彎)	—
CAP Motorized Capacity	40,000 pcs/H	84,000 pcs/H (超高速)	40,000 pcs/H	40,000 pcs/H	40,000 pcs/H
