YF-900
Ren Thang Machine
YF-900
Automatic Transistor Lead Forming Machine
自動電晶體成型機
The YF-900 is an automated assembly machine designed for transistor heatsink mounting and lead forming, performing automated heatsink placement, screw tightening, and lead bending in a continuous cycle. It eliminates labor-intensive manual heatsink assembly while ensuring precise heatsink alignment.
Processing & Feature Tags
BOX
ENGINEERING SPECIFICATIONS
Machine Specifications & Performance
Processing Capacity 3,600 pcs/hr
Power / Air Supply 110V/60Hz ; 220V/50Hz
Standard Tolerance ±0.3mm
Dimensions (L×W×H) 1050(L) × 600(W) × 900(H) mm
Net Weight 140 kg
Catalog Page & Status
P.16 (Catalog_0016) • 在產 (Active)
【Key Machine Features & Advantages】
- Automatic transistor lead former with high-precision 5-pallet indexing rotary table, built for high-throughput mass production.
- High forming output up to 3,600 pcs/hour with step-by-step single-part precision feeding to minimize defects.
- Flexible feeding methods: accommodates vibratory bowl feeder, photoelectric-controlled linear track, or manual placement.
- Wide component compatibility: forms MOSFETs, TRIACs, LEDs, TO-92 / TO-220 power transistors, large electrolytic capacitors, etc.
- Modular interchangeable tooling: quick changeovers between different bend profiles, lead offsets, standoff kinking, and trimming.
- Specialized variant: available as YF-900E dedicated model for Hall-effect sensors.
- Advanced automation combo (YF-900 + RT-700): docks seamlessly with the RT-700 automatic tube feeder for unattended continuous feeding of tube-packaged power devices.
【Revision Notes】 霍爾元件專用機型為 YF-900E；可加裝 RT-700 全自動管裝送料器。
Lead Forming & Geometric Parameter Specifications

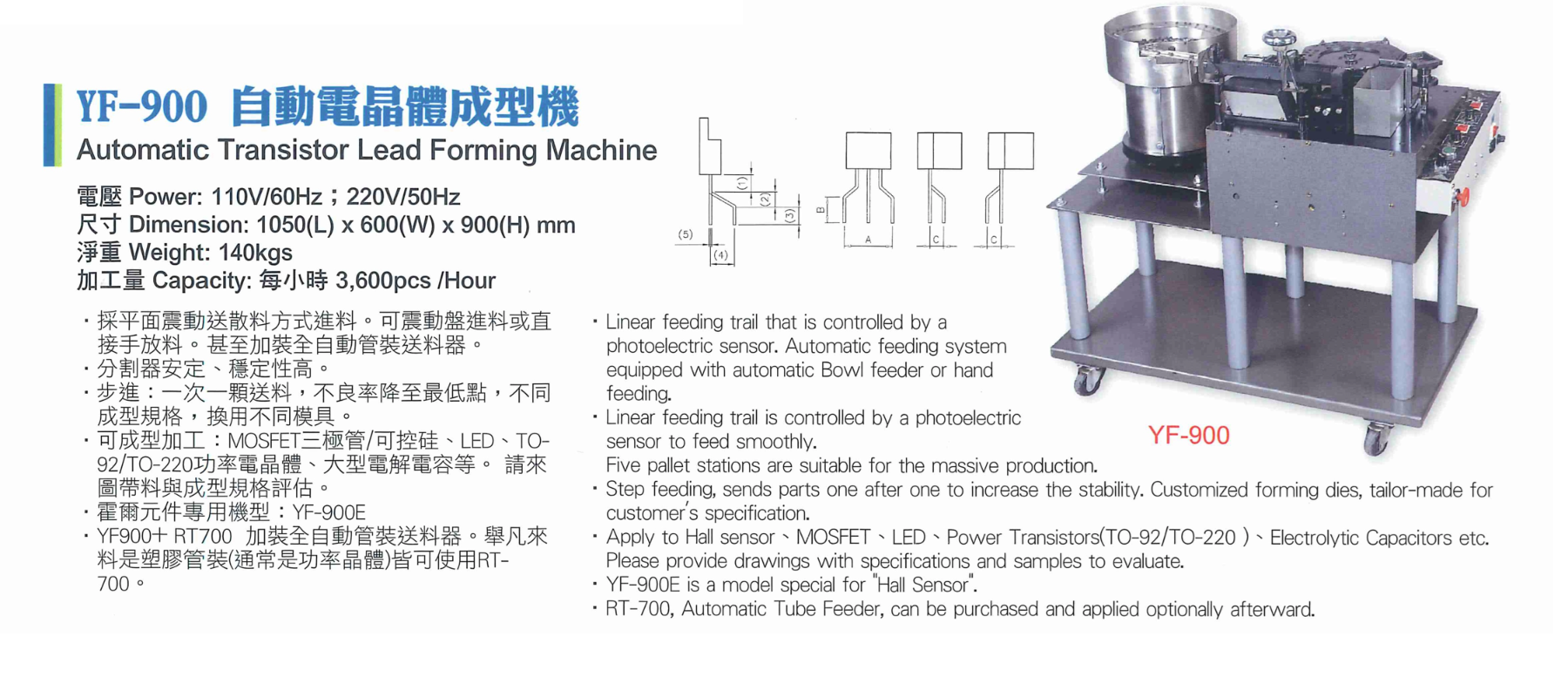

Unit: mm / Custom tooling available Dimension & Bending Schematic YF-900
Callouts match specifications in the table (Click image to enlarge)
| Code | Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|---|
| CAP_HR | Processing Speed | 3,600 pcs / 小時 (Hour) | Step-by-step single-grain feeding defect rate is reduced to the lowest point |
| ROTARY_STA | Indexing Pallet Stations | 五分割安定旋轉盤 (5 Pallets) | Mass production is extremely stable and stable |
| FEED_MODES | Feeding Methods | 平面電磁震動盤 / 直線光電軌道 / 手放料 | Photoelectric automatic sensing ensures smooth feeding without jamming |
| APPLY_PARTS | Applicable Components | MOSFET, LED, TO-92, TO-220, 電解電容 | Flexible production by changing different molding forming dies |
| HALL_MODEL | Hall Sensor Variant | YF-900E 專用型 | Special molding corresponding to Hall sensing components |
| INLINE_COMBO | Automatic Tube Feeder Option | 可加裝 RT-700 全自動管裝送料器 | Continuous automated production of plastic tube-mounted power crystals |
TECHNICAL DOCUMENTATION
View All Technical Documents →
Technical Documents & User Manuals
YF-900C Jumper Wire Former Cutter Diagram & Manual
Parts Diagram & Manual GENUINE CONSUMABLES
View All Spare Parts →
Recommended Genuine Consumables & Spare Parts
Genuine replacement blades, belts, and dies are kept in stock for this machine line. Browse Parts Catalog →
